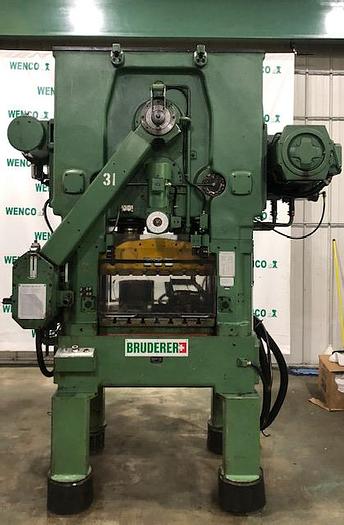

1981 BRUDERER BSTA-50

1981 BRUDERER BSTA-50

Ringwood, NJ

orCall (888) 439-3626

Description

Punching Capacity 60 Tons

Stroke, Variable 5/8” to 2”

Speed 100 - 1200 SPM

Ram Height Adjustment 2.50" Powered

Tool Opening 30.30"

Shut Height 9.05" to 11.57" @ 5/8" Stroke

9.00" to 11.51" @ 3/4" STROKE

8.87" to 11.39" @ 1" Stroke

8.74" to 11.25" @ 1-1/4" Stroke

8.62" to 11.14" @ 1-1/2" Stroke

8.50' to 11.02" @ 1-3/4" Stroke

8.36" to 10.88" @ 2" Stroke

Bruderer feed BBV 202-120

Max Strip Width 8"

Feed Length 0 to 4.72"

Strip Inlet Height 2.00" to 5.50"

Bolster Plate 29.92" x 25.59"

Ram Face 30.00" x 16.54

Drive Power 25KW

Air Supply 85 psi

Height Approx 118.00" x 98.00" x 71.00"

Weight Approx 15,000 lbs


Feed Speed Performance Chart:

SPM 630 725 800 850 960 1100 1200

Max Stroke 2.00" 1-3/4" 1-1/2" 1-1/4" 1" 3/4" 5/8"

Max Pitch 4.72" 4.50" 4.25" 4.00" 3.00" 2.75" 2.50"

Specifications

ManufacturerBRUDERER
ModelBSTA-50
Year1981
ConditionUsed
Serial Number5825
