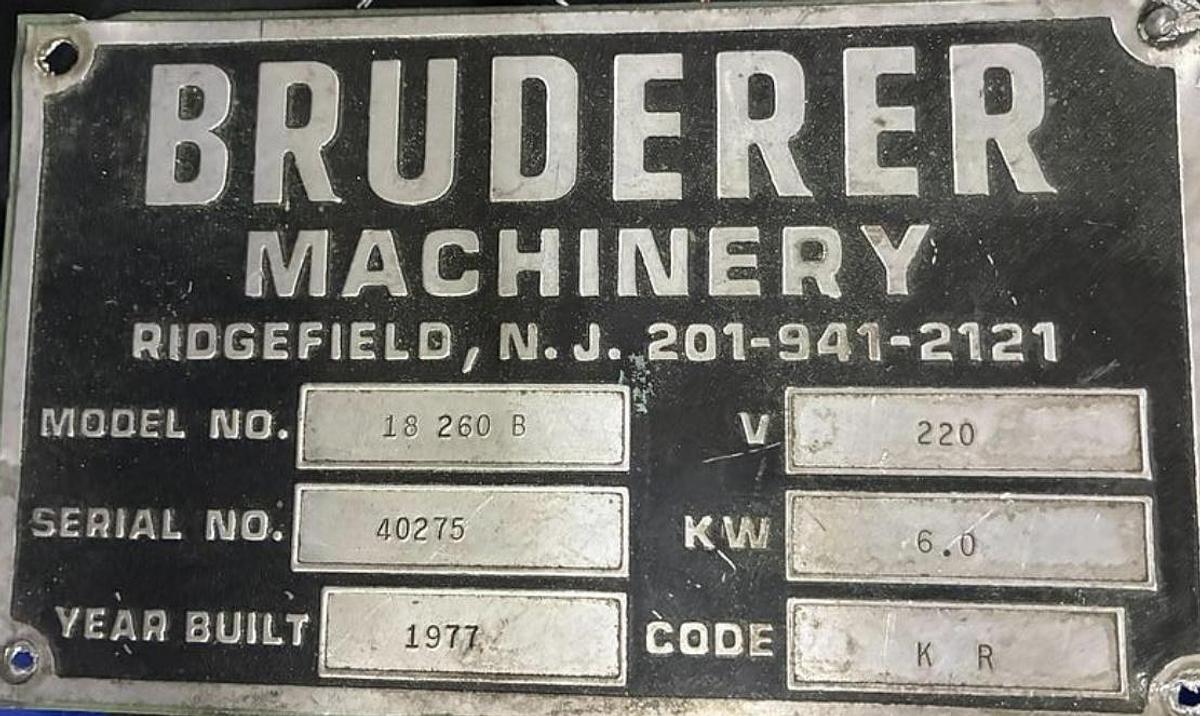

BRUDERER 18-260b

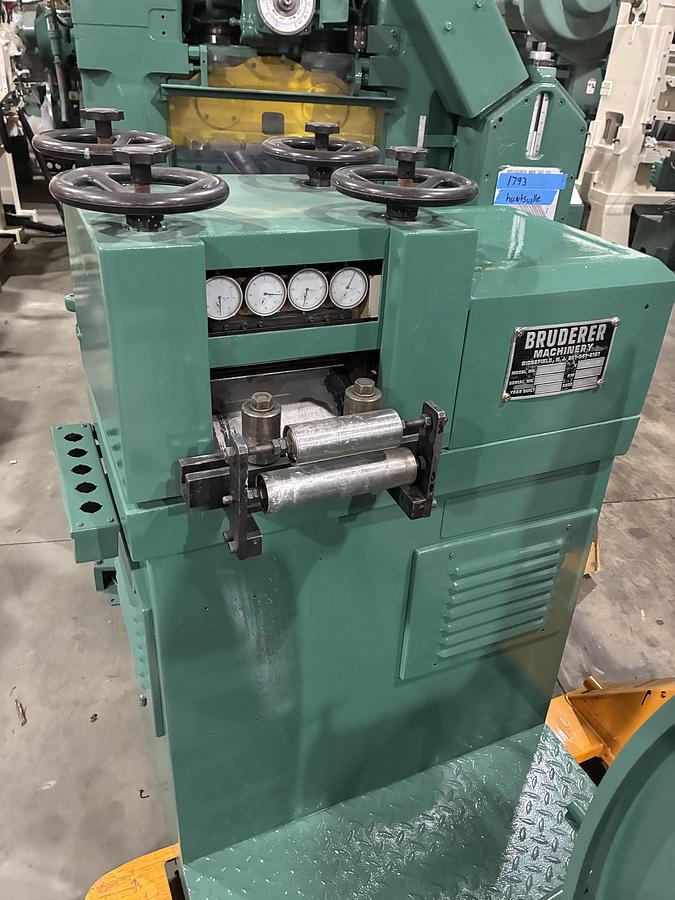

LEVELER - MODEL 18 260B

MAX MATERIAL WIDTH 260 MM

MATERIAL THICKNESS RANGE 0.20 TO 4.00 MM

SPEED 0-60 M/MIN

NO OF STRAIGHTENING ROLLS 19

DIAMETER OF ROLLS 18 MM

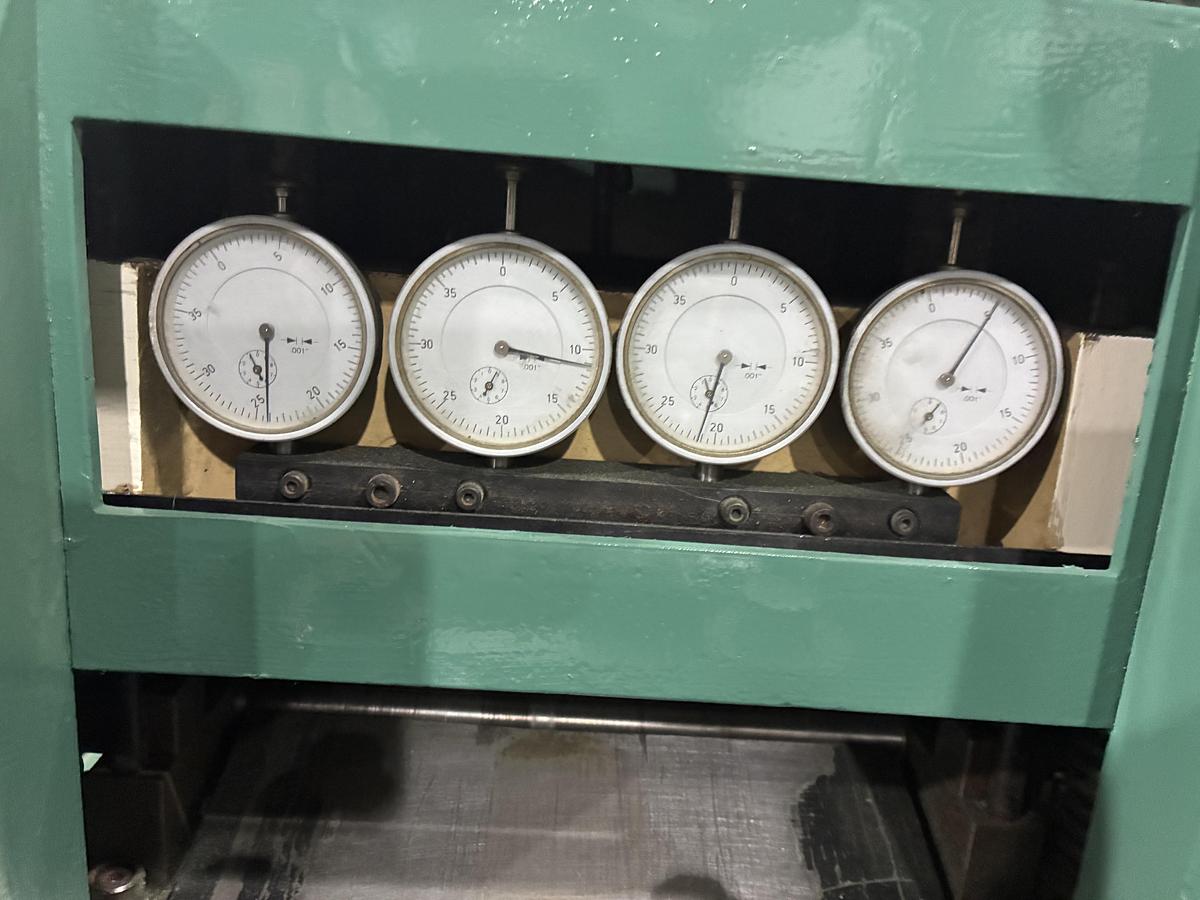

READING OF MACHINE ADJUSTMENT 0.01 MM

MAX VERTICAL DISTANCE BETWEEN ROLLS 8MM

NORMALLY ATTAINABLE MATERIAL FLATNESS

WITHIN THE MATERIAL THICKNESS TOLERANCE 0.02 MM

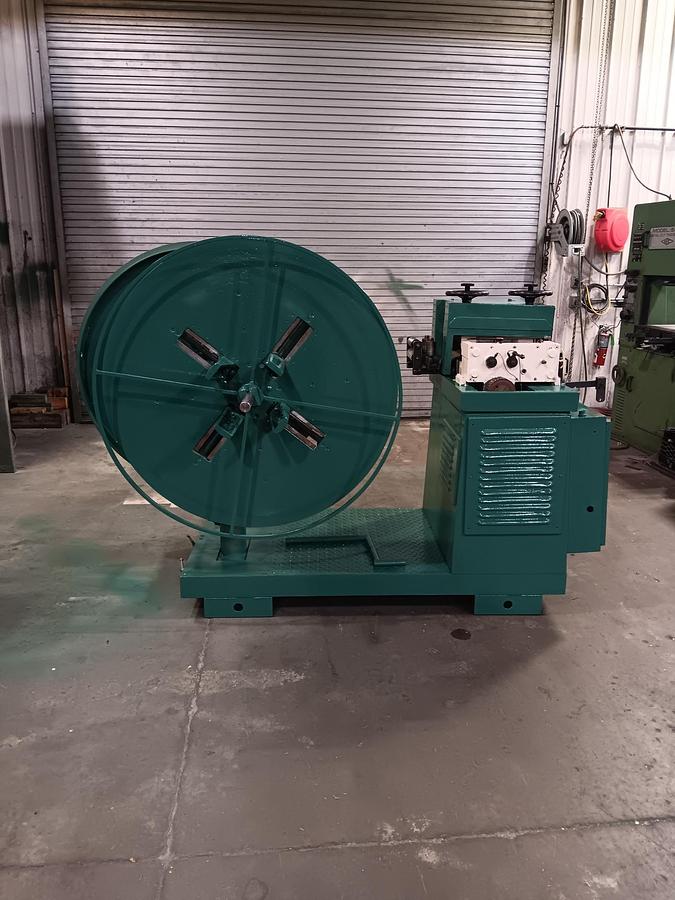

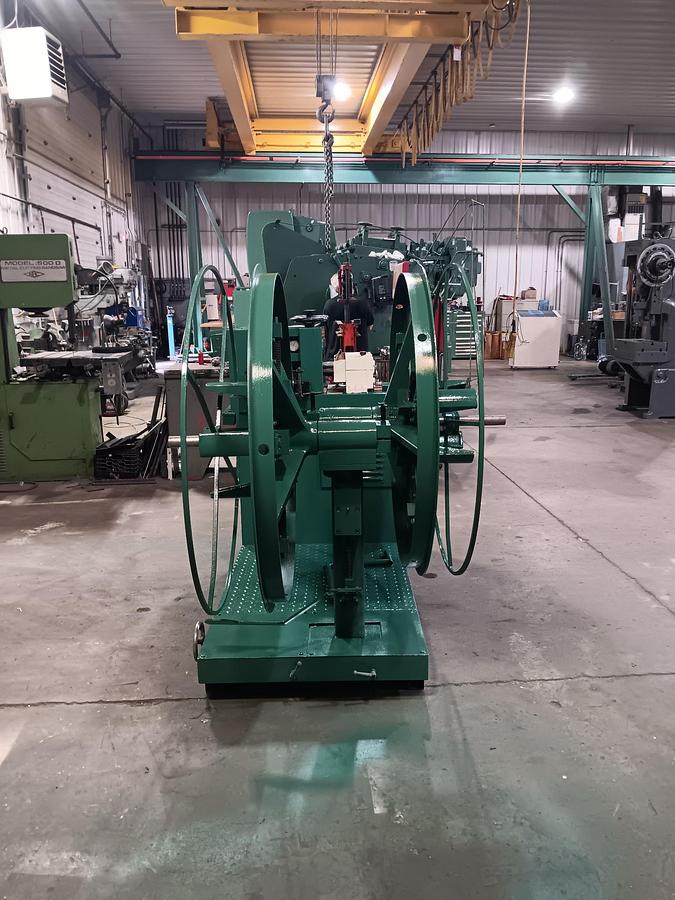

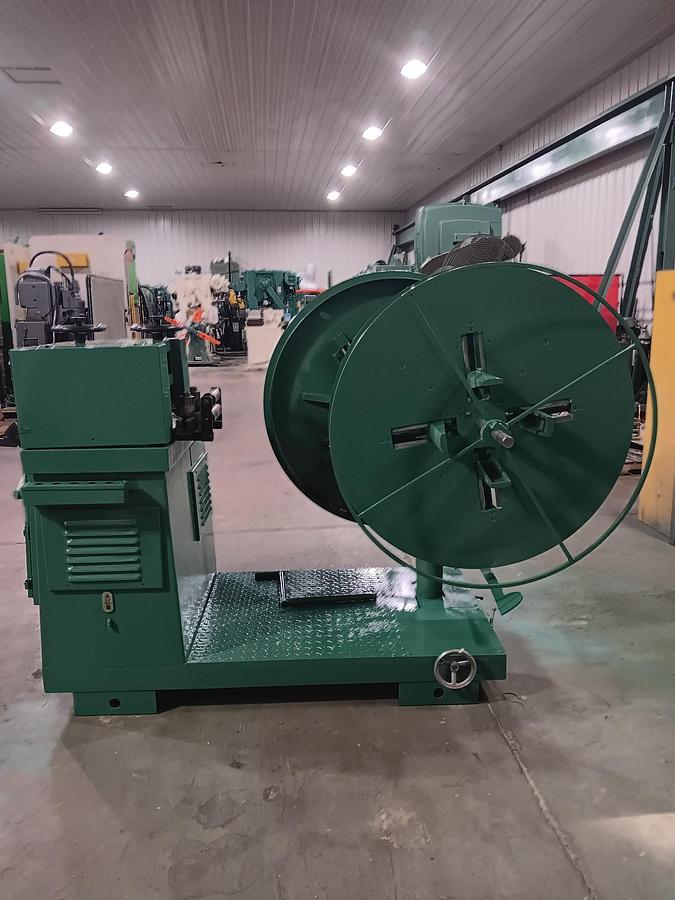

BASE WITH DOUBLE UNCOILER

• 1500 LBS EACH SIDE
• BASE TO ASSURE ALIGNMENT BETWEEN REEL & LEVELER
• DRAG BRAKE
•


CONTROL FEATURES:

• NEW 5 HP INVERTER DUTY MOTOR
• NEW E510 10 HP VFD DRIVE (VOLTAGE REQUIRED AT ORDER)
• NEW CONTROL - SELECTOR SWITCHES, PUSH BUTTONS, WIRING
• NEW LOOP ARM
•


OPTIONS:

• BANNER SONIC LOOP CONTROL WITH STAND ADD $1500

TERMS: 50% WITH ORDER, BALANCE PRIOR TO SHIPMENT

F.O.B RINGWOOD, NJ

LEAD TIME 4-5 WEEKS

WARRANTY: 1 YEAR ON CONTROLS, VFD, & MOTOR
