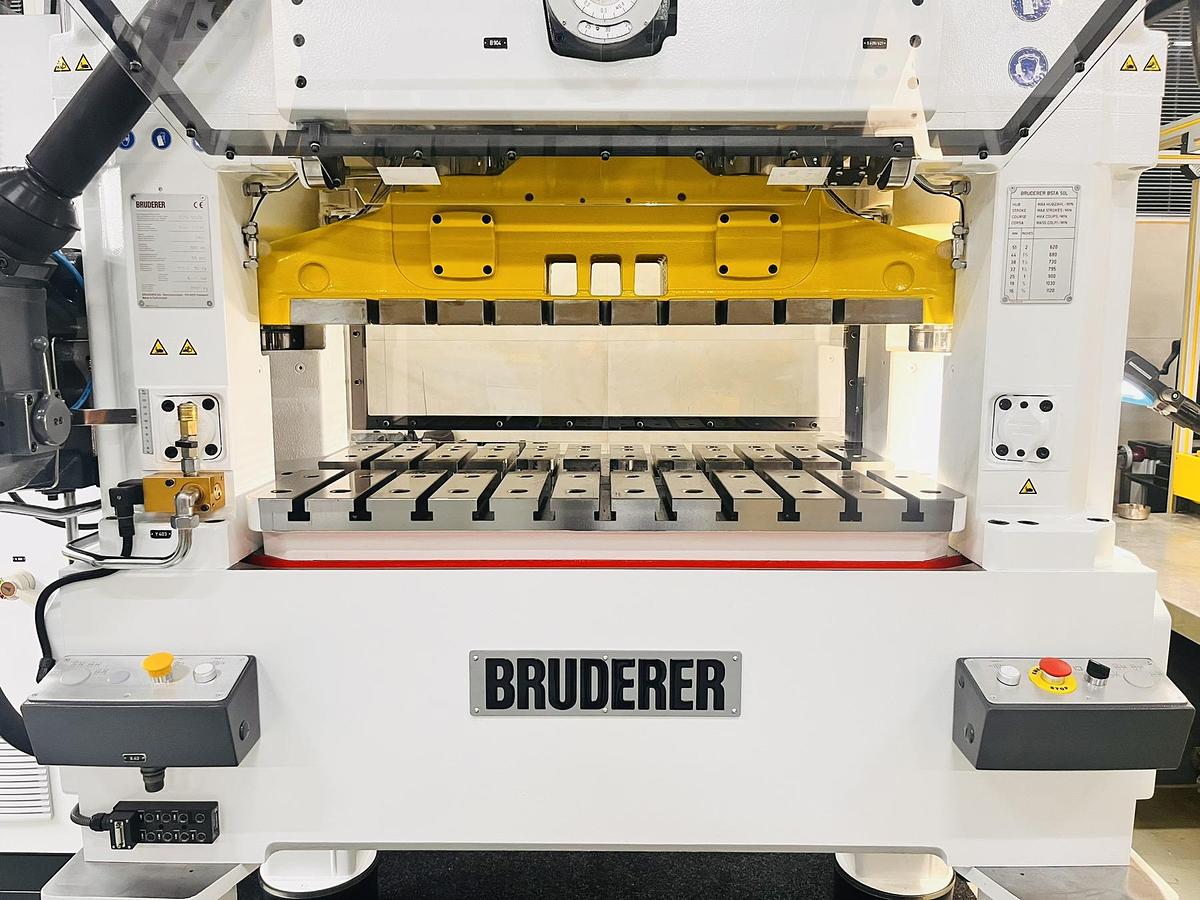

BRUDERER BSTA 50 USL

BRUDERER BSTA 50 USL

With Automatic Strip Feeder BBV 190/85

500 kN | 100–1120 spm | Fully automatic | Top-tier Swiss quality

Technical Highlights:

Nominal force: 500 kN

Stroke rate: 100–1120 strokes per minute

Working hours: 41000 h

Year 1995 / Reconditioned Year 2025

Main motor: 22 kW

Control voltage: 24V DC

Power connection: 400V / 50Hz / 62 kVA

Adjustable stroke: 16 / 19 / 25 / 32 / 38 /44 / 51 mm

Shut height adjustment: 64 mm

Working Dimensions:

Max tool installation width: 1100 mm

Strip pass width: up to 256 mm

Ram area: 980 × 420 mm

Table area: 1080 × 650 mm

Strip entry height adjustable: 60–140 mm

Max strip width: 120 mm

Max feeding pitch: 85 mm

Max material thickness: 4 mm

Feeding angle: 180 Deg

Machine Dimensions (with BBV 190):

Machine footprint (L × W × H): 2407 × 1278 × 3150 mm

Weight (approx.): 8,000 kg

Equipment Includes:

Feeder BBV 190 – fully synchronized mechanical strip feeder system

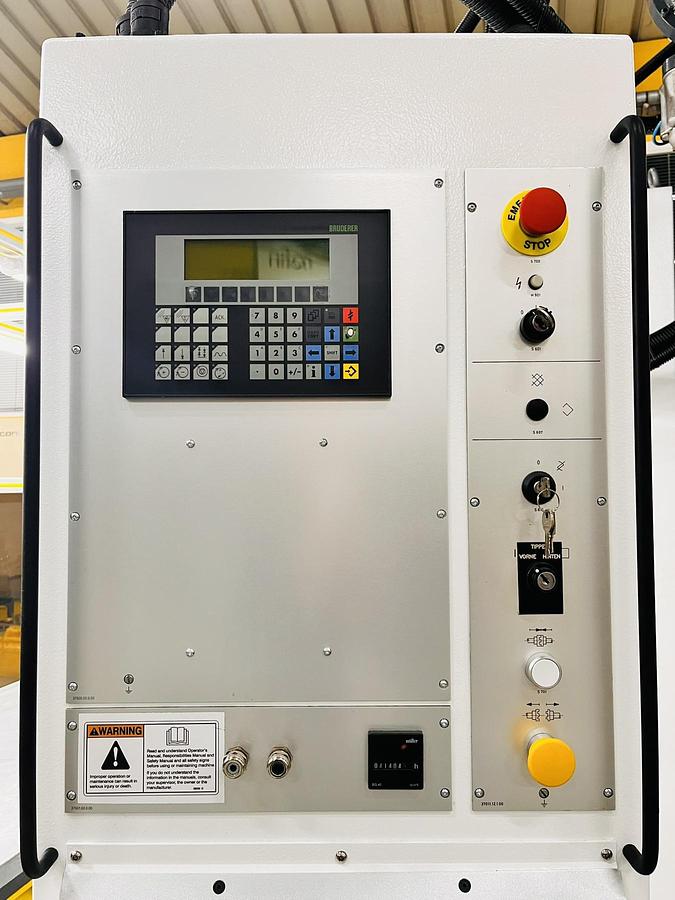

Integrated control cabinet

Pneumatic clutch and brake

Adjustable stroke and shut height

Compressed air connection: 6–10 bar

Oil cooling unit included

Ready for integration with peripheral systems

Condition & Delivery: CE Certificate

Machine in excellent technical and visual condition

Fully serviced and tested

Immediate availability from Europe

Worldwide shipping available

Contact us today for pricing and further technical details.

Let us help you upgrade your production line with Swiss precision engineering.

PRICE REQUEST

Table length is 1100 mm or 43 inches. Press is in mint, tested fully functional condition. We have reconditioned press visually to factory conditon. No oil leaks, no unusual noises, no uneven heating of any part of the frame or mechanism.

Mechanically machine is in complete working as standard new machine. Parallelism bolster plates tolerance from left to right and from back to front is 0.02 mm. Bruderer BBV feeder 190/85 is set to factory standard.

Press have original 41.000 hours. Also have Siegfried Vester Swiss tool monitoring system.
