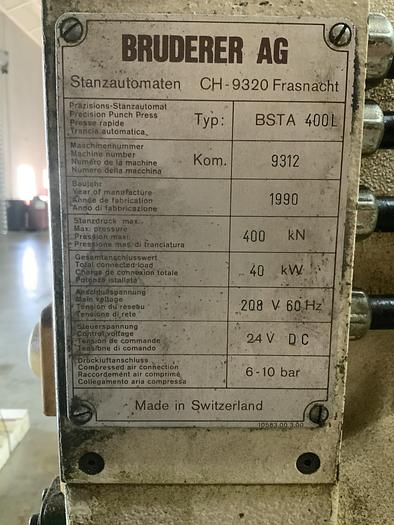

1990 BRUDERER BSTA 400L

Speed range 100 to 1300 SPM max.

Stroke lengths 19.1 mm and 28.6 mm.

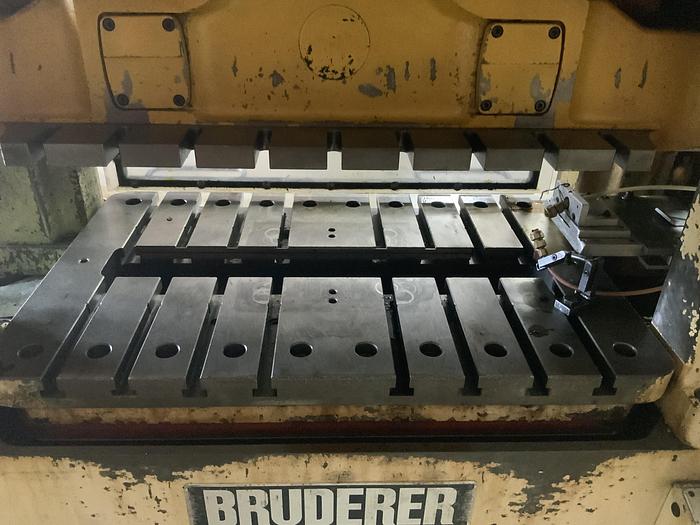

Bolster area 760 x 590 mm.

Ram area 630 x 360 mm.

Max tool width clearance 770 mm.

Feed BBV 190/85 roll

Weight of press off 7000 kgs.

Machine dimensions 2010 x 1200 x 3065 mm high.
