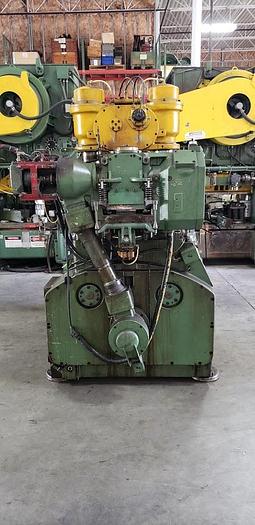

BRUDERER BSTA 60HL HIGH SPEED PRESS

Specifications and Dimensions:

Tonnage near bottom of stroke:                                             75 tons

Ram guide rod diameter (4):                                                  5-1/2"

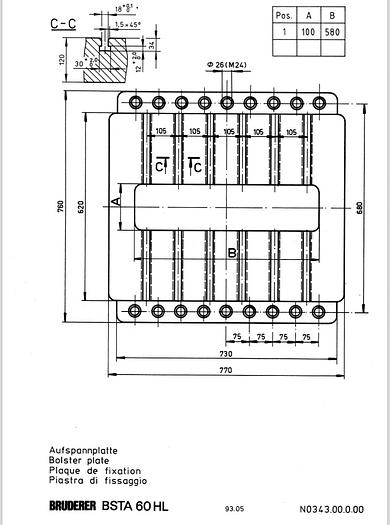

Bolster area front to back:                                                      24"

Bolster area right to left:                                                         30.314”

Bed opening front to back & left to right:                                10-1/2" x 25.5"

Shut-height, stroke down, adj. up:                                         11-1/8" (at 1-1/2" stroke)

Adjustment of ram (power):                                                    3-1/2"

Thickness of bolster:                                                              4-3/4"

Bolster Cutout Standard:                                                        4” x 28”

Speed strokes per minute:                                                     100 - 800

Adjustable stroke:                                                                   From 3/4" to 3.0"

Strip Inlet height adjustable:                                                   From 2.0" to 4-1/2"

Weight, approx.:                                                                     10 tons

Motor, 220V or 440V:                                                             22Kw/30Hp

Color:                                                                                      Bruderer Green
