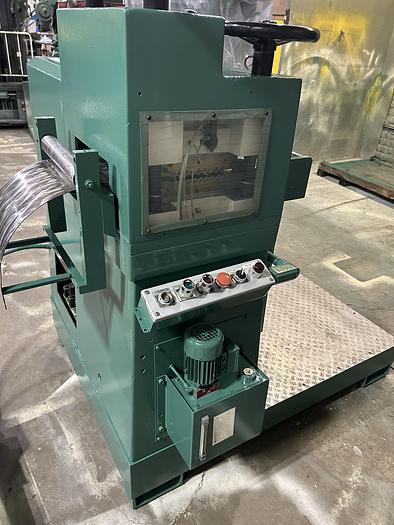

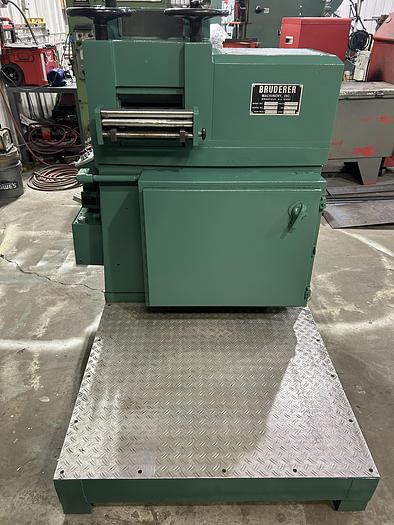

BRUDERER 18260-1000.2

SPECIFICATIONS:

MAX MATERIAL WIDTH 260MM

MATERILA TICKNESS RANGE 0.20-4 MM

SPEED 0-60 M/MIN

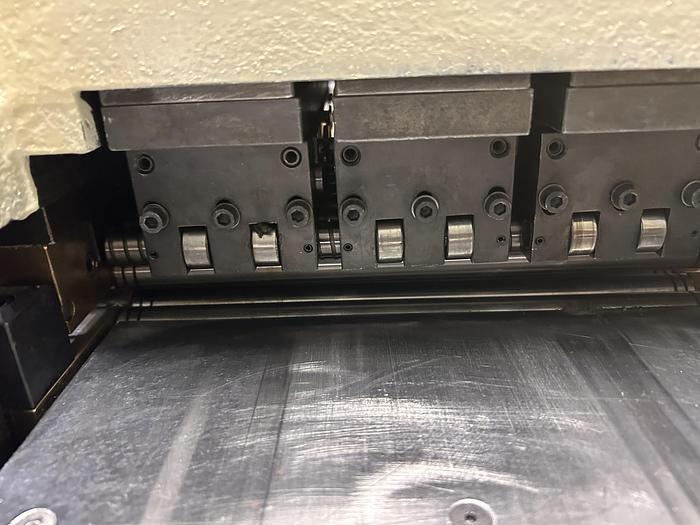

NO OF STRAIGHTENING ROLLS 19

DIAMETER OF ROLLS 18 MM

READING OF MACHINE ADJUSTMENT 0.01 MM

MAX VERTICAL DISTANCE BETWEEN ROLLS 8MM

NORMALLY ATTAINABLE MATERIAL FLATNESS

WITHIN THE MATERIAL THICKNESS TOLERANCE 0.02 MM

APPROX WEIGHT 680 KG
