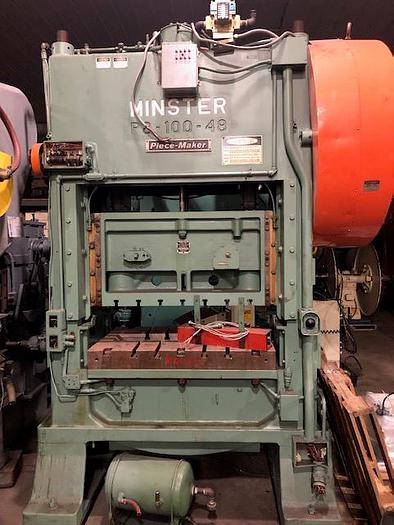

1971 MINSTER P2-100-48

• 100 U.S. Tons Capacity (910 kN) • 3.00 in. Stroke (76 mm) • 4.00 in. Slide Adjustment (100 mm) • 19.00 in. Shutheight, SDAU, on Bed (483 mm) • 48.00 x 18.50 in. Slide Area (1219 mm x 470 mm) • 48.00 x 31.00 in. Bed Area (1219 mm x 787 mm) • 41.00 x 15.00 in. Bed Opening (1041 mm x 381 mm) • 50.00 in. Between Gibs (1270 mm)) • 100-200 spm • 15 HP, 1800 RPM Drive Motor (11.25 kW) • 240VAC/60Hz/3ph Incoming Voltage • 26.600 lbs. Approximate Press Weight (11,970 kg) • Flywheel Press • Four Piece Tie Rod Construction Frame • Minster Combination Air Clutch & Brake • Pneumatic Counterbalance • Drip Troughs Cast Integral to Bed • Long Barrel Type Adjustment, arranged for Detachable Air Wrench • Arranged for one Cross Bar Knockout • New Lube Pump, Motor, and Filters • Eddy Current Drive
