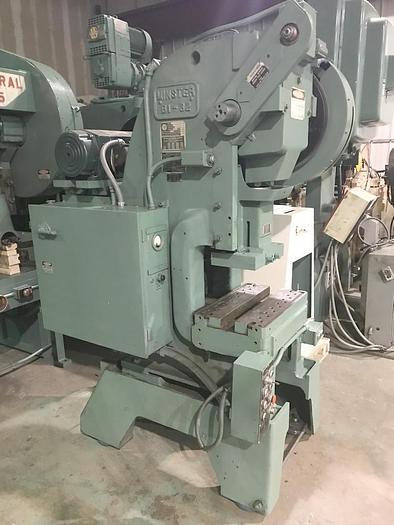

32 Ton, MINSTER, No. B1-32, ADJUSTABLE STROKE HIGH SPEED PRESS

Sold

32 Ton, MINSTER, No. B1-32, ADJUSTABLE STROKE HIGH SPEED PRESS

Location:Ringwood, NJ

Description

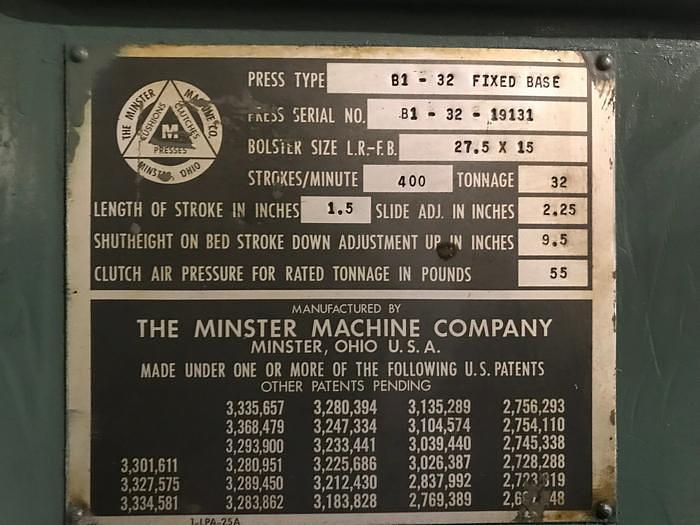

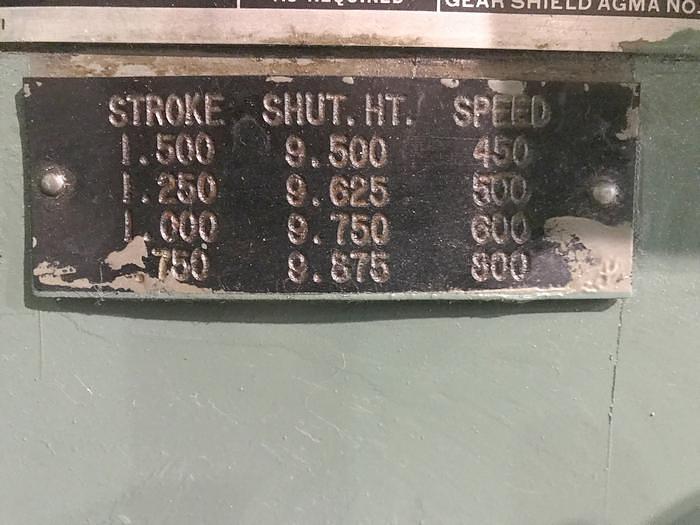

SPECIFICATIONS TONNAGE RATING 32 ADJUSTABLE STROKE (FOUR SETTINGS) 1-1/2", 1.25", 1", .75" SLIDE ADJ. 2-1/4" SHUTHEIGHT ON BED (SDAU) 9-1/2" @ 1.5" 9.625" @ 1.25" 9.750" @ 1" 9.875" @ .750" BOLSTER DIMENSIONS 27.5" X 15" RAM DIMENSIONS 14" X 9-1/2" MOTOR SPECIFICATIONS 7.5 HP EDDY CURRENT DRIVE VOLTAGE 230/460/3/60 SPEED OF PRESS (SPM) 100 - 450 @ 1.5" 500 @ 1.250" 600 @ 1" 800 @ .750" RECIRCULATING LUBRICATION SYSTEM INCLUDED DIMENSIONS 4' X 3' X 100"H WEIGHT 5700 LBS

Specifications

ManufacturerMINSTER
ModelB1-32
ConditionUsed
Serial Number19131
Stock Number2713
