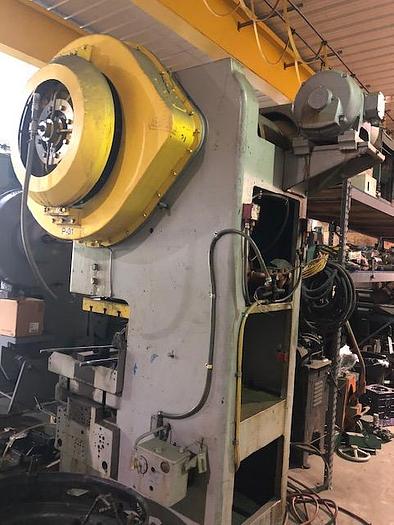

90 Ton, MINSTER 70-5 OBS, 4"Str, GAP FRAME PUNCH PRESS

Ringwood, NJ

orCall (888) 439-3626

Description

SPECIFICATIONS
DRIVE SINGLE GEARED
TONNAGE RATING 90 TON
TYPE OF CLUTCH/BRAKE AIR
STROKE 4"
SLIDE ADJUSTMENT 4"
SHUTHEIGHT ON BED (SDAU) 11"
BED AREA 40" L-R X 26" F-B
SLIDE AREA 30" L-R X 20" F-B
BOLSTER THICKNESS 4"
WIDTH OF OPENING IN BACK 22"
BED OPENING, DIA 20"
MOTOR SPECIFICATIONS 7.5 HP
SPEED OF PRESS 70
FOOT PRINT 4' L-R X 5' F-B
OVERALL HEIGHT 132" **
EQUIPPED WITH:
- MINSTER AUTOMATIC RECIRCULATING LUBRICATION SYSTEM
- TWO COUNTERBALANCE CYLINDERS TOP MOUNTED (24" HIGH) **

Specifications

ManufacturerMINSTER
Model70-5
ConditionUsed
Stock Number2595
