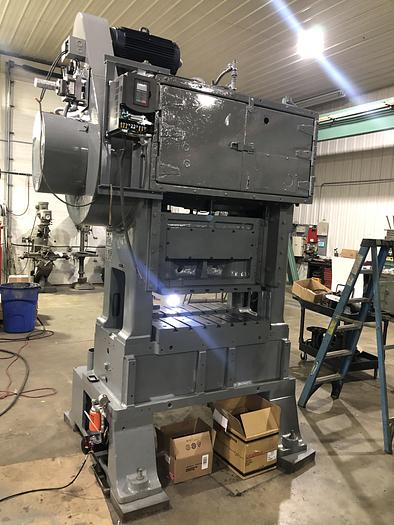

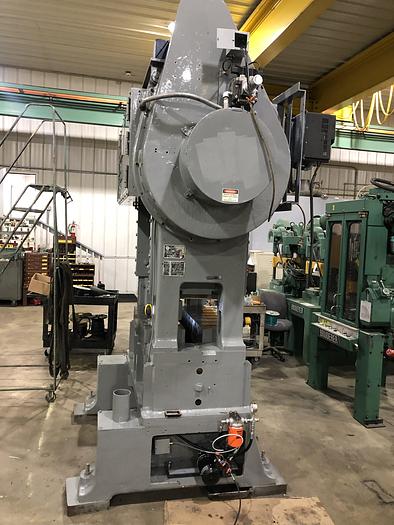

45 Ton, MINSTER, No. P2-45-36, 2-1/2" STROKE, STRAIGHT SIDE PRESS

Ringwood, NJ

orCall (888) 439-3626

Description

 45 U.S. Tons Capacity (400 kN)
 2.50 in. Stroke (64 mm)
 1.00 in. Slide Adjustment (25 mm)
 15.00 in. Shutheight, SDAU, on Bed (381 mm)
 36.00 x 15.00 in. Slide (914 mm x 381 mm)
 36.00 x 28.00 in. Bed Area (914 mm x 711 mm)
 30.00 x 7.00 in. Bed Opening (762 mm x 179 mm)
 34.00 in. Distance, Floor to Top of Bed (864 mm)
 38.00 in. Between Gibs (965 mm)
 12.00 in. Upright Opening (304 mm)
 80 – 400 SPM
 10 HP, 1800 RPM Drive Motor (7.5 kW)

Refurbishment includes:
 New Resolver Based Press Control
o Wintriss WPC1000 or CIECO PPC1100R-2
 Rebuilt Clutch & Brake
 New Seal Kit for Counterbalance Cylinders
 Rebuilt Recirculating Lubrication Pump
 New Run Station, Press Mounted or Tee Stand
 All new wiring throughout

Specifications

ManufacturerMINSTER
ModelP2-45-36
Year1963
ConditionRefurbished
Serial Number13802
Stock Number2562
