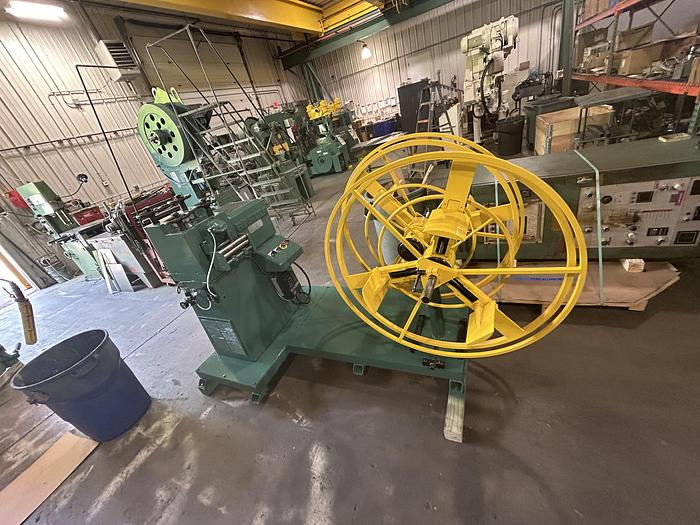

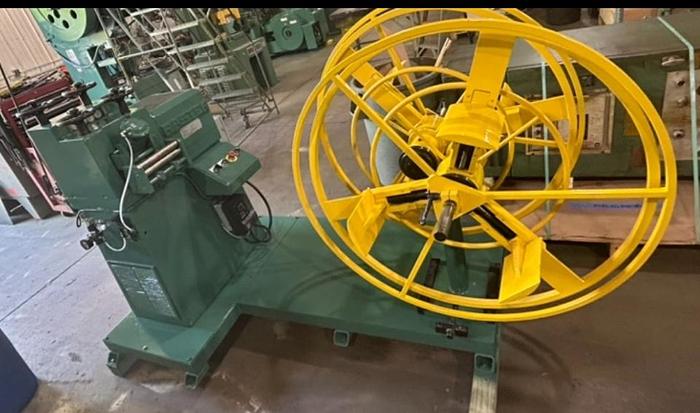

4.7" x .06", RASTER , No. 12120B, 1982,LEVELER W/DOUBLE PAYOFF UNCOILER

SPECIFICATIONS
MODEL RASTER 12-120+150-2
MAX. STOCK-WIDTH 4.7"
MAX. THICKNESS (MILD STEEL) .060"
MIN. THICKNESS (MILD STEEL) .004"
NUMBER OF STRAIGHTENING ROLLS 19
DIA. OF STRAIGHTENING ROLLS .47"
VOLTAGE 220/3/60
CAPACITY OF DOUBLE PAYOFF 350 LBS EACH SIDE
THE LEVELER AND THE DOUBLE UNCOILER ON A COMMON BASE
WILL INCLUDE NEW CONTROLS: NEW VFD, MOTOR, AND NEW PUCHS BUTTONS & BANNER SONIC SENSOR
FOR LOOP CONTROL
