BRUDERER BSTA 60HSL HIGH SPEED UNDERDRIVE

Ringwood, NJ

orCall (888) 439-3626

Description

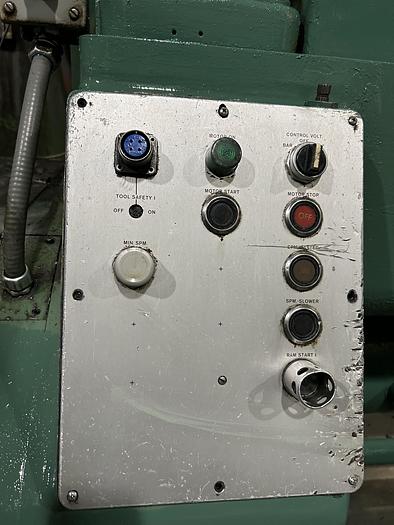

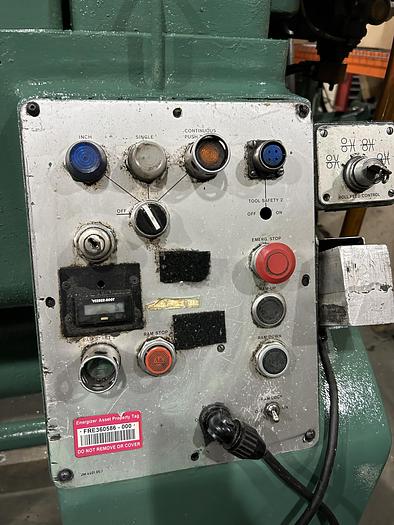

60 TON BRUDERER PRECISION HIGH SPEED (4) PILLAR TYPE PUNCH PRESS MODEL BSTA60HSL (LONG BED) CAPACITY --------------------------------- 60 TON STROKE ----- ( ADJUSTABLE ) --- .75" TO 3.00" (10 ADJUSTMENTS) RAM ADJUSTMENT ------------------- 3.156" STROKE AT 3/4" -------------------------- 8.5" TO 11.5" STROKE AT 3" ---------------------------- 7.25" TO 10.5" BED AREA ---------------------------------- 36" LR X 31" FB SLIDE FACE AREA -------------------- 33.5" LR X 18" FB DISTANCE BETWEEN PILLARS ---- 36.5" by LR X 13.4" FB SPEED ------ ( VARIABLE ) ----------------- 150 TO 580 SPM MAX. MATERIAL WIDTH ( OF BBV FEED ) ------- 11.75" MAX. MATERIAL FEED INDEX ( @ 650 SPM ) ---- 7.65" AIR CLUTCH AND BRAKE WITH SELECTOR CONTROLS NO FOUNDATION REQUIRED MAIN DRIVE MOTOR -------------------------- A.C. APPROXIMATE MACHINE WEIGHT ---------------- 19,200 LBS APPROXIMATE MACHINE DIMENSIONS ------------ 100"(LR) X 83"(FB) X 87"(H) EQUIPPED WITH --- 3" THICK BOLSTER PLATE HYDROSTATIC VARIABLE SPEED DRIVE UNDER DRIVEN DESIGN BRUDERER PRECISION ROLL FEED CYLINDRICAL POST GUIDES ELECTRICAL CONTROLS

Specifications

ManufacturerBRUDERER
ModelBSTA 60HSL
ConditionUsed
Stock Number2102
